Rotary Encoder

  • 40, 50 and 58 mm case diameter
  • Magnetic incremental encoder
  • 4 ... 512 ppr.
  • Voltage or SSI output options
  • IP 54 protection

  • Feedback encoder for synchronous gearless motors
  • BISS or SSI interface
  • Optical absolute encoder
  • Absolute 13 bit rotor feedback data (max. 21 bit)
  • 1 Vpp/2048 ppr SinCos incremental signals (A,B)
  • Additional 1 Vpp/1 ppr absolute commutation signals (C,D)
  • Physically compatible with SSI and EnDat layer
  • Fast transmission rates at 10 Mhz clock frequancy
  • Protected data transmission with CRC sum. (failure check)
  • User friendly installation
  • Rigid shaft coupling

  • 40, 50, 58, 80 and 100 mm case diameter
  • 100 -  200 - 360 - 400 - 500 - 600 - 720 - 1000 - 1024 - 1800 - 2000 - 2048 - 2500 - 3600 - 4000 - 4096 - 5000 ppr.
  • Shaft, Semi hollow and Hollow diameter
  • Push-Pull, TTL Linedriver and HTL Linedriver outputs
  • 3500 rpm  max.

About Rotary Encoder

Rotary encoders, used wherever speed, direction, lenght and position information need to be known. Optic encoders produced with optic (reflectic-transmissive) and magnetic princible manufacturing.

Many different models are avaible.

There are two main types of rotary encoder. Incremental and absolute.

Incremental encoder output signal is a measure of the angle of rotation or distance.

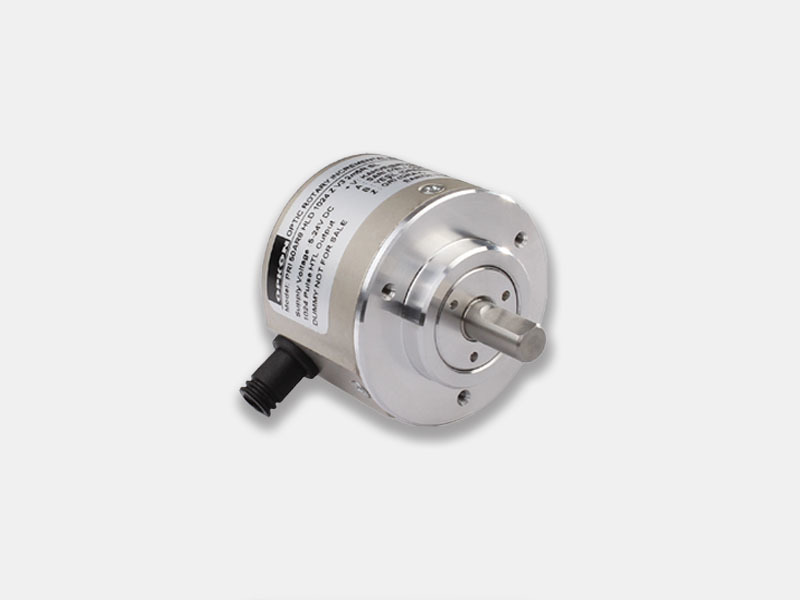

Opkon produce shaft, semi hollow and hollow shaft (rod) type encoders with different pulse number (ppr). And different output configurations such as push-pull, TTL Linedriver or HTL Linedriver.

High performance SSI/BISS output absolute encoders for industrial servo motor applications. Specially use for gearless synchronous elevator motor applications.

Opkon rotary encoders has high resolution and roubust mechanic structures.
